These are installation instructions for the Astropixel Projector Mounts from LayerPrint Etsy Shop.

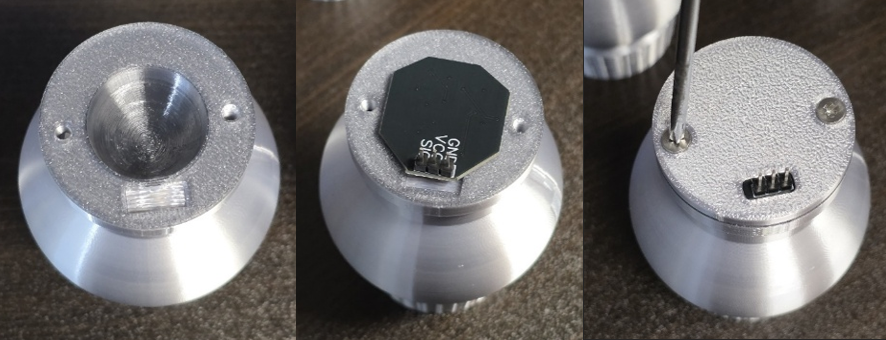

Prepare the HoloProjectors by deciding on a diffuser configuration (None, Dark, Light), placing the Astropixel board with the pins over the cutout area, and attach the backplate over top the board with provided screws.
Remove the stock holo projectors, keeping the screws for the next steps.

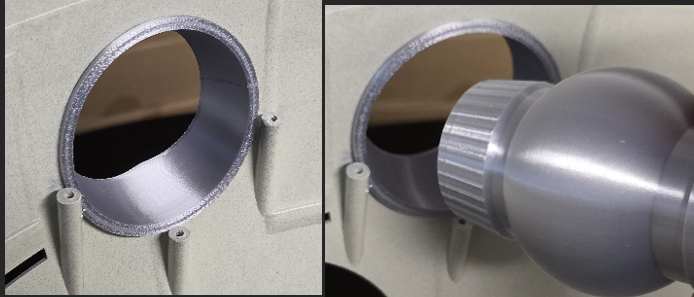

Insert the new rings and holo projectors into the openings.

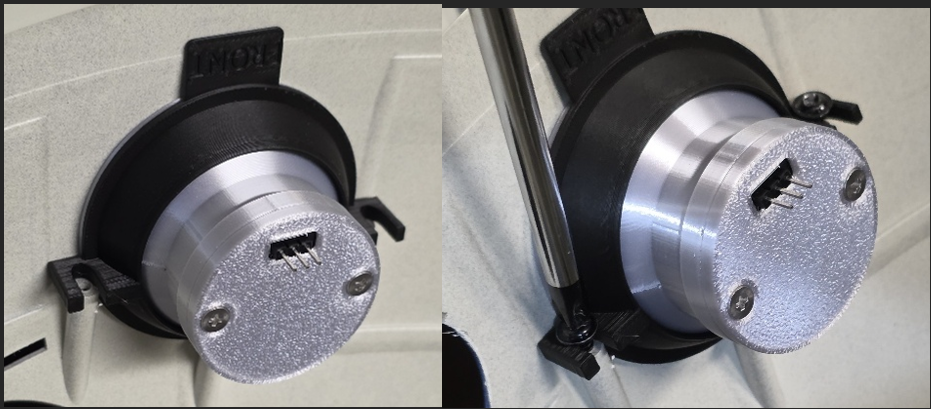

Install the screw ring and use the original screws to secure it in place.
Do not over-tighten the screws. Adjust the tightness to have the desired movement of the holo projectors.

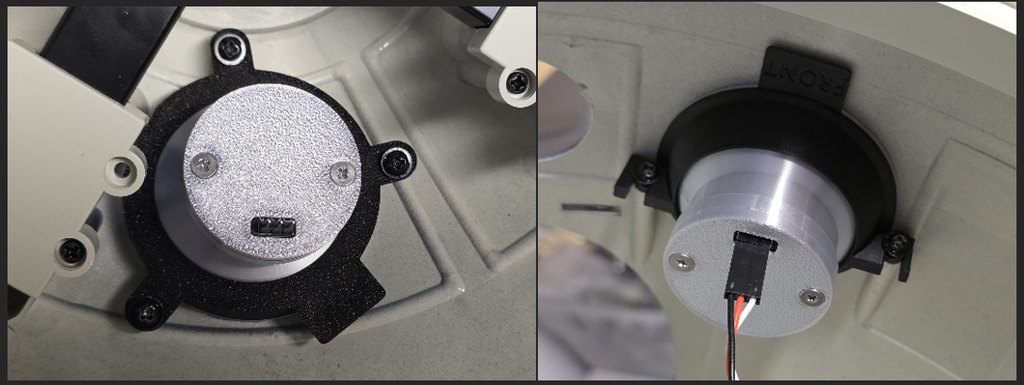

Repeat for the remaining projectors and connect the wires.
